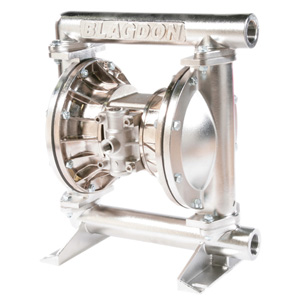

B25 FDA Pump
Product Details
Available in Electro-Polished Stainless Steel with various component material options
Fitted with 1 inch suction/discharge fittings
Operates at a maximum air pressure of 8.6 Bar
Flowrate of 180 litres per minute.
Specifications
Drawings
Performance Curve
Specifications
Maximum Delivery
58 ltrs/min (12.7 gal/min)
Max. Working Pressure
8.6 bar (125 PSI)
Max. Solid Particle Size
2 mm. (0.08")
Air Inlet
1/4" BSP (F)
Temperature Limits
Determined by Elastomers
Fluid Inlet / Outlet
1" Tri-Clamp (Other Options Available RJT/DIN)
Installation
-
Shipping Weight
8.7 kg. Stainless Steel / Aluminum

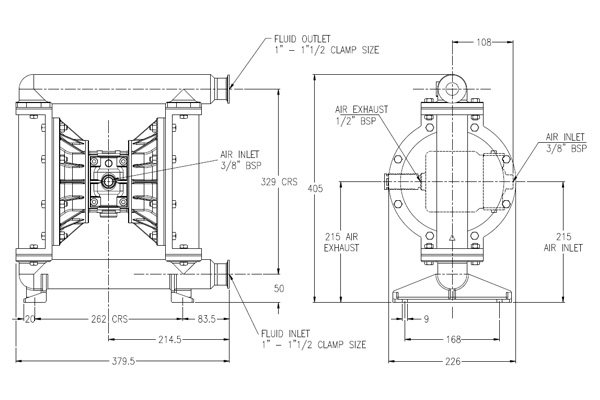

Drawings

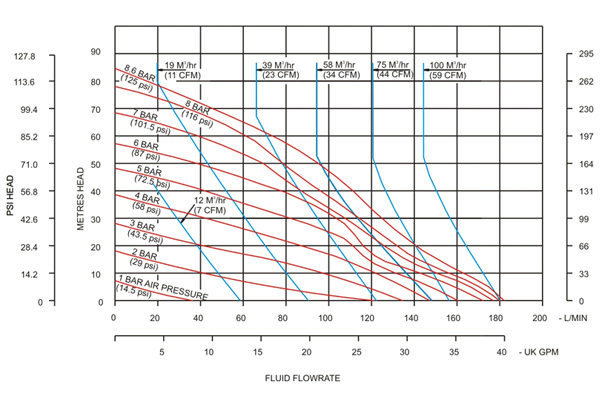

Performance Curve
