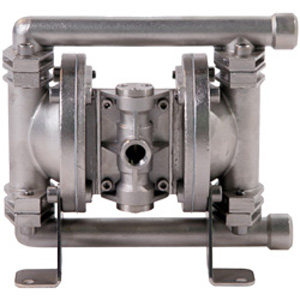

B06 Metallic Pump
Product Details
Simple construction, easy to maintain
Self-priming, ideal for empting containers
High-quality investment cast design
Pressures to 8.1 bar (125 PSI)
Flow rates up to 18 litres/minute (4.8 gal/min)
Bolted construction for safety
Reliable pneumatic air valve system
Constructed from 316L stainless steel
Specifications
Drawings
Performance Curve
Specifications
Maximum Delivery
18 ltrs/min (4.8 gal/min)
Max. Working Pressure
8.6 bar (125 PSI)
Max. Solid Particle Size
1 mm. (0.04")
Air Inlet
1/4 " NPT
Temperature Limits
Determined by Elastomers
Suction Lift (Dry)
1.5 metres (4.9 feet)
Suction Lift (Wet)
4.1 metres (13.5 feet)
Fluid Inlet / Outlet
1/4 " BSP / NPT
Installation
Wall or surface mounted
Accessories Included
Exhaust Air Silencer
Shipping Weight
3.7 kg. (8.2 lbs) stainless steel
Shipping Dimensions
240 x 180 x 200 mm, 9/5 " x 7.1 " x 7.9 "
Drawings
Performance Curve
